Joint en Z standard - Impérial






Joints en Z Standard




D.I. 1/8"

Nominal
S/T
Numéro de pièce

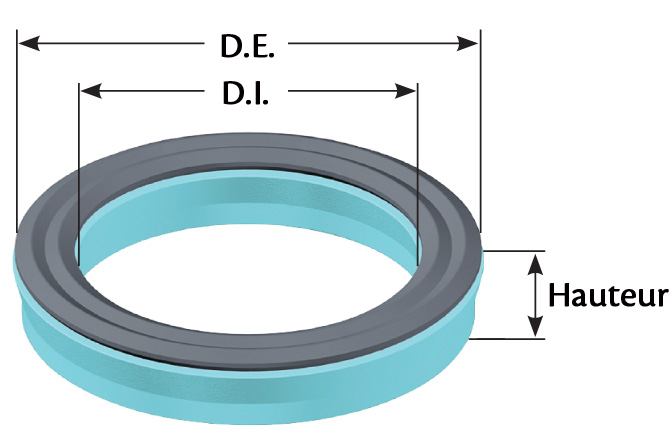

D.I.
D.E.
Hauteur
1/8"
Z 12500125250
1/8
3/8
1/4
Z 12500187250
3/16
7/16
1/4
Z 12500250250
1/4
1/2
1/4
Z 12500312250
5/16
9/16
1/4
Z 12500375250
3/8
5/8
1/4
Z 12500437250
7/16
11/16
1/4
Z 12500500250
1/2
3/4
1/4
Z 12500562250
9/16
13/16
1/4
Z 12500625250
5/8
7/8
1/4
Z 12500687250
11/16
15/16
1/4
Z 12500750250
3/4
1
1/4
Z 12500812250
13/16
1 - 1/16
1/4
Z 12500875250
7/8
1 - 1/8
1/4
Z 12500937250
15/16
1 - 3/16
1/4
Z 12501000250
1
1 - 1/4
1/4
Z 12501062250
1 - 1/16
1 - 5/16
1/4


Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
Z 12501125250
1 - 1/8
1 - 3/8
1/4
Z 12501187250
1 - 3/16
1 - 7/16
1/4
Z 12501250250
1 - 1/4
1 - 1/2
1/4
Z 12501312250
1 - 5/16
1 - 9/16
1/4
Z 12501375250
1 - 3/8
1 - 5/8
1/4
Z 12501437250
1 - 7/16
1 -11/16
1/4
Z 12501500250
1 - 1/2
1 - 3/4
1/4
Z 12501625250
1 - 5/8
1 - 7/8
1/4
Z 12501750250
1 - 3/4
2
1/4
Z 12501875250
1 - 7/8
2 - 1/8
1/4
Z 12502000250
2
2 - 1/4
1/4
Z 12502125250
2 - 1/8
2 - 3/8
1/4
Z 12502250250
2 - 1/4
2 - 1/2
1/4
Z 12502375250
2 - 3/8
2 - 5/8
1/4
Z 12502500250
2 - 1/2
2 - 3/4
1/4

D.I. 3/16"

Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
3/16"
Z 18700187312
3/16
9/16
5/16
Z 18700250312
1/4
5/8
5/16
Z 18700312312
5/16
11/16
5/16
Z 18700375312
3/8
3/4
5/16
Z 18700437312
7/16
13/16
5/16
Z 18700500312
1/2
7/8
5/16
Z 18700562312
9/16
15/16
5/16
Z 18700625312
5/8
1
5/16
Z 18700687312
11/16
1 - 1/16
5/16
Z 18700750312
3/4
1 - 1/8
5/16
Z 18700812312
13/16
1 - 3/16
5/16
Z 18700875312
7/8
1 - 1/4
5/16
Z 18700937312
15/16
1 - 5/16
5/16
Z 18701000312
1
1 - 3/8
5/16
Z 18701062312
1 - 1/16
1 - 7/16
5/16
Z 18701125312
1 - 1/8
1 - 1/2
5/16
Z 18701187312
1 - 3/16
1 - 9/16
5/16
Z 18701250312
1 - 1/4
1 - 5/8
5/16
Z 18701312312
1 - 5/16
1 -11/16
5/16
Z 18701375312
1 - 3/8
1 - 3/4
5/16
Z 18701437312
1 - 7/16
1 -13/16
5/16
Z 18701500375
1 - 1/2
1 - 7/8
3/8
Z 18701625375
1 - 5/8
2
3/8
Z 18701687375
1 -11/16
2 - 1/16
3/8



Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
Z 18701750375
1 - 3/4
2 - 1/8
3/8
Z 18701875375
1 - 7/8
2 - 1/4
3/8
Z 18702000375
2
2 - 3/8
3/8
Z 18702125375
2 - 1/8
2 - 1/2
3/8
Z 18702250375
2 - 1/4
2 - 5/8
3/8
Z 18702375375
2 - 3/8
2 - 3/4
3/8
Z 18702500375
2 - 1/2
2 - 7/8
3/8
Z 18702625375
2 - 5/8
3
3/8
Z 18702750375
2 - 3/4
3 - 1/8
3/8
Z 18702875375
2 - 7/8
3 - 1/4
3/8
Z 18703000375
3
3 - 3/8
3/8
Z 18703125375
3 - 1/8
3 - 1/2
3/8
Z 18703250375
3 - 1/4
3 - 5/8
3/8
Z 18703375375
3 - 3/8
3 - 3/4
3/8
Z 18703500375
3 - 1/2
3 - 7/8
3/8
Z 18703625375
3 - 5/8
4
3/8
Z 18703750375
3 - 3/4
4 - 1/8
3/8
Z 18703875375
3 - 7/8
4 - 1/4
3/8
Z 18704000375
4
4 - 3/8
3/8
Z 18704125375
4 - 1/8
4 - 1/2
3/8
Z 18704250375
4 - 1/4
4 - 5/8
3/8
Z 18704375375
4 - 3/8
4 - 3/4
3/8
Z 18704500375
4 - 1/2
4 - 7/8
3/8

D.I. 1/4"

Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
1/4"
Z 25000250375
1/4
3/4
3/8
Z 25000312375
5/16
13/16
3/8
Z 25000375375
3/8
7/8
3/8
Z 25000437375
7/16
15/16
3/8
Z 25000500375
1/2
1
3/8
Z 25000562375
9/16
1 - 1/16
3/8
Z 25000625375
5/8
1 - 1/8
3/8
Z 25000687375
11/16
1 - 3/16
3/8
Z 25000750375
3/4
1 - 1/4
3/8
Z 25000812375
13/16
1 - 5/16
3/8
Z 25000875375
7/8
1 - 3/8
3/8
Z 25000937375
15/16
1 - 7/16
3/8
Z 25001000375
1
1 - 1/2
3/8
Z 25001062375
1 - 1/16
1 - 9/16
3/8
Z 25001125375
1 - 1/8
1 - 5/8
3/8
Z 25001187375
1 - 3/16
1 - 11/16
3/8
Z 25001250375
1 - 1/4
1 - 3/4
3/8
Z 25001312375
1 - 5/16
1 - 13/16
3/8
Z 25001375375
1 - 3/8
1 - 7/8
3/8
Z 25001437375
1 - 7/16
1 - 15/16
3/8
Z 25001500375
1 - 1/2
2
3/8
Z 25001625375
1 - 5/8
2 - 1/8
3/8
Z 25001750375
1 - 3/4
2 - 1/4
3/8
Z 25001875375
1 - 7/8
2 - 3/8
3/8
Z 25002000375
2
2 - 1/2
3/8
Z 25002125375
2 - 1/8
2 - 5/8
3/8
Z 25002250375
2 - 1/4
2 - 3/4
3/8
Z 25002375375
2 - 3/8
2 - 7/8
3/8
Z 25002500375
2 - 1/2
3
3/8
Z 25002625375
2 - 5/8
3 - 1/8
3/8
Z 25002750375
2 - 3/4
3 - 1/4
3/8
Z 25003250375
3 - 1/4
3 - 3/4
3/8
Z 25003375375
3 - 3/8
3 - 7/8
3/8
Z 25003500375
3 - 1/2
4
3/8
Z 25003625375
3 - 5/8
4 - 1/8
3/8



Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
Z 25003750375
3 - 3/4
4 - 1/4
3/8
Z 25004000562
4
4 - 1/2
9/16
Z 25004125562
4 - 1/8
4 - 5/8
9/16
Z 25004250562
4 - 1/4
4 - 3/4
9/16
Z 25004375562
4 - 3/8
4 - 7/8
9/16
Z 25004500562
4 - 1/2
5
9/16
Z 25004625562
4 - 5/8
5 - 1/8
9/16
Z 25004750562
4 - 3/4
5 - 1/4
9/16
Z 25004875562
4 - 7/8
5 - 3/8
9/16
Z 25005000562
5
5 - 1/2
9/16
Z 25005125562
5 - 1/8
5 - 5/8
9/16
Z 25005250562
5 - 1/4
5 - 3/4
9/16
Z 25005375562
5 - 3/8
5 - 7/8
9/16
Z 25005500562
5 - 1/2
6
9/16
Z 25005625562
5 - 5/8
6 - 1/8
9/16
Z 25005750562
5 - 3/4
6 - 1/4
9/16
Z 25005875562
5 - 7/8
6 - 3/8
9/16
Z 25006000562
6
6 - 1/2
9/16
Z 25006250562
6 - 1/4
6 - 3/4
9/16
Z 25006500562
6 - 1/2
7
9/16
Z 25006750562
6 - 3/4
7 - 1/4
9/16
Z 25007000562
7
7 - 1/2
9/16
Z 25007250562
7 - 1/4
7 - 3/4
9/16
Z 25007500562
7 - 1/2
8
9/16
Z 25007750562
7 - 3/4
8 - 1/4
9/16
Z 25008000562
8
8 - 1/2
9/16
Z 25008250562
8 - 1/4
8 - 3/4
9/16
Z 25008500562
8 - 1/2
9
9/16
Z 25008750562
8 - 3/4
9 - 1/4
9/16
Z 25009000562
9
9 - 1/2
9/16
Z 25009250562
9 - 1/4
9 - 3/4
9/16
Z 25009500562
9 - 1/2
10
9/16
Z 25009750562
9 - 3/4
10 - 1/4
9/16
Z 250010000562
10
10 - 1/2
9/16

D.I. 5/16"

Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
5/16"
Z 31200375500
3/8
1
1/2
Z 31200437500
7/16
1 - 1/16
1/2
Z 31200500500
1/2
1 - 1/8
1/2
Z 31200562500
9/16
1 - 3/16
1/2
Z 31200625500
5/8
1 - 1/4
1/2
Z 31200687500
11/16
1 - 5/16
1/2
Z 31200750500
3/4
1 - 3/8
1/2
Z 31200812500
13/16
1 - 7/16
1/2
Z 31200875500
7/8
1 - 1/2
1/2
Z 31200937500
15/16
1 - 9/16
1/2
Z 31201000500
1
1 - 5/8
1/2
Z 31201062500
1 - 1/16
1 -11/16
1/2
Z 31201125500
1 - 1/8
1 - 3/4
1/2
Z 31201187500
1 - 3/16
1 -13/16
1/2
Z 31201250500
1 - 1/4
1 - 7/8
1/2
Z 31201312500
1 - 5/16
1 -15/16
1/2
Z 31201375500
1 - 3/8
2
1/2
Z 31201437500
1 - 7/16
2 - 1/16
1/2
Z 31201500500
1 - 1/2
2 - 1/8
1/2
Z 31201625500
1 - 5/8
2 - 1/4
1/2
Z 31201750500
1 - 3/4
2 - 3/8
1/2
Z 31201875500
1 - 7/8
2 - 1/2
1/2
Z 31202000500
2
2 - 5/8
1/2
Z 31202125500
2 - 1/8
2 - 3/4
1/2
Z 31202250500
2 - 1/4
2 - 7/8
1/2
Z 31202375500
2 - 3/8
3
1/2
Z 31202500500
2 - 1/2
3 - 1/8
1/2
Z 31202625500
2 - 5/8
3 - 1/4
1/2
Z 31202750500
2 - 3/4
3 - 3/8
1/2
Z 31202875500
2 - 7/8
3 - 1/2
1/2
Z 31203000500
3
3 - 5/8
1/2
Z 31203125500
3 - 1/8
3 - 3/4
1/2
Z 31203250500
3 - 1/4
3 - 7/8
1/2



Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
Z 31203375500
3 - 3/8
4
1/2
Z 31203500500
3 - 1/2
4 - 1/8
1/2
Z 31203625500
3 - 5/8
4 - 1/4
1/2
Z 31203750500
3 - 3/4
4 - 3/8
1/2
Z 31203875500
3 - 7/8
4 - 1/2
1/2
Z 31204000562
4
4 - 5/8
9/16
Z 31204125562
4 - 1/8
4 - 3/4
9/16
Z 31204250562
4 - 1/4
4 - 7/8
9/16
Z 31204375562
4 - 3/8
5
9/16
Z 31204500625
4 - 1/2
5 - 1/8
5/8
Z 31204625625
4 - 5/8
5 - 1/4
5/8
Z 31204750625
4 - 3/4
5 - 3/8
5/8
Z 31204875625
4 - 7/8
5 - 1/2
5/8
Z 31205000625
5
5 - 5/8
5/8
Z 31205125625
5 - 1/8
5 - 3/4
5/8
Z 31205250625
5 - 1/4
5 - 7/8
5/8
Z 31205375625
5 - 3/8
6
5/8
Z 31205500625
5 - 1/2
6 - 1/8
5/8
Z 31205625625
5 - 5/8
6 - 1/4
5/8

Z 31205750625
5 - 3/4
6 - 3/8
5/8
Z 31205875625
5 - 7/8
6 - 1/2
5/8
Z 31206000625
6
6 - 5/8
5/8
Z 31206125625
6 - 1/8
6 - 3/4
5/8
Z 31206250625
6 - 1/4
6 - 7/8
5/8
Z 31206375625
6 - 3/8
7
5/8
Z 31206500625
6 - 1/2
7 - 1/8
5/8
Z 31206625625
6 - 5/8
7 - 1/4
5/8
Z 31206750625
6 - 3/4
7 - 3/8
5/8
Z 31206875625
6 - 7/8
7 - 1/2
5/8
Z 31207000625
7
7 - 5/8
5/8
Z 31207125625
7 - 1/8
7 - 3/4
5/8
Z 31207250625
7 - 1/4
7 - 7/8
5/8
Z 31207375625
7 - 3/8
8
5/8

D.I. 3/8"

Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
3/8"
Z 37500500625
1/2
1 - 1/4
5/8
Z 37500562625
9/16
1 - 5/16
5/8
Z 37500625625
5/8
1 - 3/8
5/8
Z 37500687625
11/16
1 - 7/16
5/8
Z 37500750625
3/4
1 - 1/2
5/8
Z 37500812625
13/16
1 - 9/16
5/8
Z 37500875625
7/8
1 - 5/8
5/8
Z 37500937625
15/16
1 -11/16
5/8
Z 37501000625
1
1 - 3/4
5/8
Z 37501062625
1 - 1/16
1 -13/16
5/8
Z 37501125625
1 - 1/8
1 - 7/8
5/8
Z 37501187625
1 - 3/16
1 -15/16
5/8
Z 37501250625
1 - 1/4
2
5/8
Z 37501312625
1 - 5/16
2 - 1/16
5/8
Z 37501375625
1 - 3/8
2 - 1/8
5/8
Z 37501437625
1 - 7/16
2 - 3/16
5/8
Z 37501500625
1 - 1/2
2 - 1/4
5/8
Z 37501625625
1 - 5/8
2 - 3/8
5/8
Z 37501750625
1 - 3/4
2 - 1/2
5/8
Z 37501875625
1 - 7/8
2 - 5/8
5/8
Z 37502000625
2
2 - 3/4
5/8
Z 37502125625
2 - 1/8
2 - 7/8
5/8
Z 37502250625
2 - 1/4
3
5/8
Z 37502375625
2 - 3/8
3 - 1/8
5/8
Z 37502500625
2 - 1/2
3 - 1/4
5/8
Z 37502625625
2 - 5/8
3 - 3/8
5/8
Z 37502750625
2 - 3/4
3 - 1/2
5/8
Z 37502875625
2 - 7/8
3 - 5/8
5/8
Z 37503000625
3
3 - 3/4
5/8

Z 37503125625
3 - 1/8
3 - 7/8
5/8
Z 37503250625
3 - 1/4
4
5/8
Z 37503375625
3 - 3/8
4 - 1/8
5/8
Z 37503500625
3 - 1/2
4 - 1/4
5/8
Z 37503625625
3 - 5/8
4 - 3/8
5/8
Z 37503750625
3 - 3/4
4 - 1/2
5/8
Z 37503875625
3 - 7/8
4 - 5/8
5/8
Z 37504000625
4
4 - 3/4
5/8
Z 37504125625
4 - 1/8
4 - 7/8
5/8
Z 37504250625
4 - 1/4
5
5/8



Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
Z 37504375625
4 - 3/8
5 - 1/8
5/8
Z 37504500625
4 - 1/2
5 - 1/4
5/8
Z 37504625625
4 - 5/8
5 - 3/8
5/8
Z 37504750625
4 - 3/4
5 - 1/2
5/8
Z 37504875625
4 - 7/8
5 - 5/8
5/8
Z 37505000625
5
5 - 3/4
5/8
Z 37505125625
5 - 1/8
5 - 7/8
5/8
Z 37505250625
5 - 1/4
6
5/8
Z 37505375625
5 - 3/8
6 - 1/8
5/8
Z 37505500625
5 - 1/2
6 - 1/4
5/8
Z 37505625625
5 - 5/8
6 - 3/8
5/8
Z 37505750625
5 - 3/4
6 - 1/2
5/8
Z 37505875625
5 - 7/8
6 - 5/8
5/8
Z 37506000625
6
6 - 3/4
5/8
Z 37506250625
6 - 1/4
7
5/8
Z 37506500625
6 - 1/2
7 - 1/4
5/8
Z 37506750625
6 - 3/4
7 - 1/2
5/8
Z 37507000625
7
7 - 3/4
5/8
Z 37507250625
7 - 1/4
8
5/8
Z 37507500625
7 - 1/2
8 - 1/4
5/8
Z 37507750625
7 - 3/4
8 - 1/2
5/8
Z 37508000625
8
8 - 3/4
5/8
Z 37508250625
8 - 1/4
9
5/8
Z 37508500625
8 - 1/2
9 - 1/4
5/8
Z 37508750625
8 - 3/4
9 - 1/2
5/8
Z 37509000625
9
9 - 3/4
5/8
Z 37509250625
9 - 1/4
10
5/8
Z 37509500625
9 - 1/2
10 - 1/4
5/8
Z 37509750625
9 - 3/4
10 - 1/2
5/8
Z 375010000625
10
10 - 3/4
5/8
Z 375010250625
10 - 1/4
11
5/8
Z 375010500625
10 - 1/2
11 - 1/4
5/8
Z 375010750625
10 - 3/4
11 - 1/2
5/8
Z 375011000625
11
11 - 3/4
5/8
Z 375011250625
11 - 1/4
12
5/8
Z 375011500625
11 - 1/2
12 - 1/4
5/8
Z 375011750625
11 - 3/4
12 - 1/2
5/8
Z 375012000625
12
12 - 3/4
5/8

D.I. 1/2"

Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
1/2"
Z 50001000750
1
2
3/4
Z 50001250750
1 - 1/4
2 - 1/4
3/4
Z 50001375750
1 - 3/8
2 - 3/8
3/4
Z 50001500750
1 - 1/2
2 - 1/2
3/4
Z 50001750750
1 - 3/4
2 - 3/4
3/4
Z 50002000750
2
3
3/4
Z 50002250750
2 - 1/4
3 - 1/4
3/4
Z 50002375750
2 - 3/8
3 - 3/8
3/4
Z 50002500750
2 - 1/2
3 - 1/2
3/4
Z 50002750750
2 - 3/4
3 - 3/4
3/4
Z 50003000750
3
4
3/4
Z 50003250750
3 - 1/4
4 - 1/4
3/4
Z 50003500750
3 - 1/2
4 - 1/2
3/4
Z 50003750750
3 - 3/4
4 - 3/4
3/4
Z 50004000750
4
5
3/4
Z 50004250750
4 - 1/4
5 - 1/4
3/4
Z 50004375750
4 - 3/8
5 - 3/8
3/4
Z 50004500750
4 - 1/2
5 - 1/2
3/4
Z 50004750750
4 - 3/4
5 - 3/4
3/4
Z 50005000750
5
6
3/4
Z 50005250750
5 - 1/4
6 - 1/4
3/4
Z 50005375750
5 - 3/8
6 - 3/8
3/4
Z 50005500750
5 - 1/2
6 - 1/2
3/4
Z 50005750750
5 - 3/4
6 - 3/4
3/4
Z 50006000750
6
7
3/4
Z 50006250750
6 - 1/4
7 - 1/4
3/4



Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
Z 50006500750
6 - 1/2
7 - 1/2
3/4
Z 50006750750
6 - 3/4
7 - 3/4
3/4
Z 50007000750
7
8
3/4
Z 50007250750
7 - 1/4
8 - 1/4
3/4
Z 50007500750
7 - 1/2
8 - 1/2
3/4
Z 50007750750
7 - 3/4
8 - 3/4
3/4
Z 50008000750
8
9
3/4
Z 50008250750
8 - 1/4
9 - 1/4
3/4
Z 50008500750
8 - 1/2
9 - 1/2
3/4
Z 50008750750
8 - 3/4
9 - 3/4
3/4
Z 50009000750
9
10
3/4
Z 50009250750
9 - 1/4
10 - 1/4
3/4

Z 50009500750
9 - 1/2
10 - 1/2
3/4
Z 50009750750
9 - 3/4
10 - 3/4
3/4
Z 500010000750
10
11
3/4
Z 500010500750
10 - 1/2
11 - 1/2
3/4
Z 500011000750
11
12
3/4
Z 500011500750
11 - 1/2
12 - 1/2
3/4
Z 500012000750
12
13
3/4
Z 500012500750
12 - 1/2
13 - 1/2
3/4
Z 500013000750
13
14
3/4
Z 500013500750
13 - 1/2
14 - 1/2
3/4
Z 500014000750
14
15
3/4
Z 500014500750
14 - 1/2
15 - 1/2
3/4
Z 500015000750
15
16
3/4

D.I. 5/8"

Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
5/8"
Z 62501250100
1 - 1/4
2 - 1/2
1
Z 62501375100
1 - 3/8
2 - 5/8
1
Z 62501500100
1 - 1/2
2 - 3/4
1
Z 62501750100
1 - 3/4
3
1
Z 62502000100
2
3 - 1/4
1
Z 62502250100
2 - 1/4
3 - 1/2
1
Z 62502500100
2 - 1/2
3 - 3/4
1
Z 62502750100
2 - 3/4
4
1
Z 62503000100
3
4 - 1/4
1
Z 62503250100
3 - 1/4
4 - 1/2
1
Z 62503500100
3 - 1/2
4 - 3/4
1
Z 62503750100
3 - 3/4
5
1
Z 62504000100
4
5 - 1/4
1
Z 62504250100
4 - 1/4
5 - 1/2
1
Z 62504500100
4 - 1/2
5 - 3/4
1
Z 62504750100
4 - 3/4
6
1
Z 62505000100
5
6 - 1/4
1
Z 62505250100
5 - 1/4
6 - 1/2
1
Z 62505500100
5 - 1/2
6 - 3/4
1
Z 62505750100
5 - 3/4
7
1
Z 62506000100
6
7 - 1/4
1
Z 62506250100
6 - 1/4
7 - 1/2
1
Z 62506500100
6 - 1/2
7 - 3/4
1
Z 62506750100
6 - 3/4
8
1
Z 62507000100
7
8 - 1/4
1
Z 62507250100
7 - 1/4
8 - 1/2
1
Z 62507500100
7 - 1/2
8 - 3/4
1
Z 62507750100
7 - 3/4
9
1
Z 62508000100
8
9 - 1/4
1
Z 62508250100
8 - 1/4
9 - 1/2
1
Z 62508500100
8 - 1/2
9 - 3/4
1
Z 62508750100
8 - 3/4
10
1



Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
Z 62509000100
9
10 - 1/4
1
Z 62509250100
9 - 1/4
10 - 1/2
1
Z 62509500100
9 - 1/2
10 - 3/4
1
Z 62509750100
9 - 3/4
11
1
Z 625010000100
10
11 - 1/4
1
Z 625010250100
10 - 1/4
11 - 1/2
1
Z 625010500100
10 - 1/2
11 - 3/4
1
Z 625010750100
10 - 3/4
12
1
Z 625011000100
11
12 - 1/4
1
Z 625011250100
11 - 1/4
12 - 1/2
1
Z 625011500100
11 - 1/2
12 - 3/4
1
Z 625011750100
11 - 3/4
13
1
Z 625012000100
12
13 - 1/4
1
Z 625012250100
12 - 1/4
13 - 1/2
1
Z 625012500100
12 - 1/2
13 - 3/4
1
Z 625012750100
12 - 3/4
14
1
Z 625013000100
13
14 - 1/4
1
Z 625013250100
13 - 1/4
14 - 1/2
1
Z 625013500100
13 - 1/2
14 - 3/4
1
Z 625013750100
13 - 3/4
15
1
Z 625014000100
14
15 - 1/4
1
Z 625014250100
14 - 1/4
15 - 1/2
1
Z 625014500100
14 - 1/2
15 - 3/4
1
Z 625014750100
14 - 3/4
16
1
Z 625015000100
15
16 - 1/4
1
Z 625015500100
15 - 1/2
16 - 3/4
1
Z 625016000100
16
17 - 1/4
1
Z 625016500100
16 - 1/2
17 - 3/4
1
Z 625017000100
17
18 - 1/4
1
Z 625017500100
17 - 1/2
18 - 3/4
1
Z 625018000100
18
19 - 1/4
1

D.I. 3/4"

Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
3/4"
Z 75003000125
3
4 - 1/2
1 - 1/4
Z 75003250125
3 - 1/4
4 - 3/4
1 - 1/4
Z 75003500125
3 - 1/2
5
1 - 1/4
Z 75003750125
3 - 3/4
5 - 1/4
1 - 1/4
Z 75004000125
4
5 - 1/2
1 - 1/4
Z 75004250125
4 - 1/4
5 - 3/4
1 - 1/4
Z 75004500125
4 - 1/2
6
1 - 1/4
Z 75004750125
4 - 3/4
6 - 1/4
1 - 1/4
Z 75005000125
5
6 - 1/2
1 - 1/4
Z 75005250125
5 - 1/4
6 - 3/4
1 - 1/4
Z 75005500125
5 - 1/2
7
1 - 1/4
Z 75005750125
5 - 3/4
7 - 1/4
1 - 1/4
Z 75006000125
6
7 - 1/2
1 - 1/4
Z 75006250125
6 - 1/4
7 - 3/4
1 - 1/4
Z 75006500125
6 - 1/2
8
1 - 1/4
Z 75006750125
6 - 3/4
8 - 1/4
1 - 1/4
Z 75007000125
7
8 - 1/2
1 - 1/4
Z 75007250125
7 - 1/4
8 - 3/4
1 - 1/4
Z 75007500125
7 - 1/2
9
1 - 1/4
Z 75007750125
7 - 3/4
9 - 1/4
1 - 1/4
Z 75008000125
8
9 - 1/2
1 - 1/4
Z 75008250125
8 - 1/4
9 - 3/4
1 - 1/4
Z 75008500125
8 - 1/2
10
1 - 1/4
Z 75008750125
8 - 3/4
10 - 1/4
1 - 1/4
Z 75009000125
9
10 - 1/2
1 - 1/4



Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
Z 75009250125
9 - 1/4
10 - 3/4
1 - 1/4
Z 75009500125
9 - 1/2
11
1 - 1/4
Z 75009750125
9 - 3/4
11 - 1/4
1 - 1/4
Z 750010000125
10
11 - 1/2
1 - 1/4
Z 750010500125
10 - 1/2
12
1 - 1/4
Z 750011000125
11
12 - 1/2
1 - 1/4
Z 750011500125
11 - 1/2
13
1 - 1/4
Z 750012000125
12
13 - 1/2
1 - 1/4
Z 750012500125
12 - 1/2
14
1 - 1/4
Z 750013000125
13
14 - 1/2
1 - 1/4
Z 750013500125
13 - 1/2
15
1 - 1/4
Z 750014000125
14
15 - 1/2
1 - 1/4
Z 750014500125
14 - 1/2
16
1 - 1/4
Z 750015000125
15
16 - 1/2
1 - 1/4
Z 750015500125
15 - 1/2
17
1 - 1/4
Z 750016000125
16
17 - 1/2
1 - 1/4
Z 750016500125
16 - 1/2
18
1 - 1/4
Z 750017000125
17
18 - 1/2
1 - 1/4
Z 750017500125
17 - 1/2
19
1 - 1/4
Z 750018000125
18
19 - 1/2
1 - 1/4
Z 750018500125
18 - 1/2
20
1 - 1/4
Z 750019000125
19
20 - 1/2
1 - 1/4
Z 750019500125
19 - 1/2
21
1 - 1/4
Z 750020000125
20
21 - 1/2
1 - 1/4

D.I. 1"

Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
1"
Z 10003000150
3
5
1 - 1/2
Z 10003500150
3 - 1/2
5 - 1/2
1 - 1/2
Z 10004000150
4
6
1 - 1/2
Z 10004500150
4 - 1/2
6 - 1/2
1 - 1/2
Z 10005000150
5
7
1 - 1/2
Z 10005500150
5 - 1/2
7 - 1/2
1 - 1/2
Z 10006000150
6
8
1 - 1/2
Z 10006500150
6 - 1/2
8 - 1/2
1 - 1/2
Z 10007000150
7
9
1 - 1/2
Z 10007500150
7 - 1/2
9 - 1/2
1 - 1/2
Z 10008000150
8
10
1 - 1/2
Z 10008500150
8 - 1/2
10 - 1/2
1 - 1/2
Z 10009000150
9
11
1 - 1/2
Z 10009500150
9 - 1/2
11 - 1/2
1 - 1/2
Z 100010000150
10
12
1 - 1/2
Z 100010500150
10 - 1/2
12 - 1/2
1 - 1/2
Z 100011000150
11
13
1 - 1/2
Z 100011500150
11 - 1/2
13 - 1/2
1 - 1/2
Z 100012000150
12
14
1 - 1/2
Z 100012500150
12 - 1/2
14 - 1/2
1 - 1/2
Z 100013000150
13
15
1 - 1/2



Nominal
S/T
Numéro de pièce
D.I.
D.E.
Hauteur
Z 100013500150
13 - 1/2
15 - 1/2
1 - 1/2
Z 100014000150
14
16
1 - 1/2
Z 100014500150
14 - 1/2
16 - 1/2
1 - 1/2
Z 100015000150
15
17
1 - 1/2
Z 100015500150
15 - 1/2
17 - 1/2
1 - 1/2
Z 100016000150
16
18
1 - 1/2
Z 100016500150
16 - 1/2
18 - 1/2
1 - 1/2
Z 100017000150
17
19
1 - 1/2
Z 100017500150
17 - 1/2
19 - 1/2
1 - 1/2
Z 100018000150
18
20
1 - 1/2
Z 100018500150
18 - 1/2
20 - 1/2
1 - 1/2
Z 100019000150
19
21
1 - 1/2
Z 100019500150
19 - 1/2
21 - 1/2
1 - 1/2
Z 100020000150
20
22
1 - 1/2
Z 100022000150
22
24
1 - 1/2
Z 100024000150
24
26
1 - 1/2
Z 100026000150
26
28
1 - 1/2
Z 100028000150
28
30
1 - 1/2
Z 100030000150
30
32
1 - 1/2
Z 100032000150
32
34
1 - 1/2
