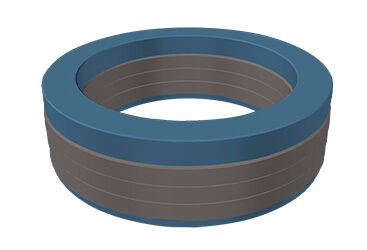

Vee packing is a popular, highly adaptable sealing product. It is typically used in adjustable gland applications such as telescoping truck hoists, pumps, and valves. Vee packing sets are composed of a top and bottom component with a varying number of center vees. Vee packing can be optimized by altering materials to accommodate different chemicals, temperatures, and pressures. See vee packing literature for more information.

Our specialty vee packing includes:

  • Specialty Packing
  • Blue & Black Sets
  • Otis Vee Packing
  • Baker Vee Packing
  • Carcotex Vee Packing

Vee Packing Profiles

Top / Female Adaptor (1)

Center Vee (0)

Bottom / Male Adaptor (2)

Carcotex Vee Packing

Hi-Tech Seals proudly offers Carco-PRP's unique line of vee packing, Carcotex. Carcotex's robust designs make them ideal for heavy-duty applications such as cylinders for steel mills, presses (plunger cylinders), offshore applications, swinging bridges, to name a few. Their vee packing is made of rolled fabric reinforced rubber, which is a great combination of flexibility and robustness. Carcotex packing is available in solid and split designs. The split design simplifies installation and eliminates the need to disassemble the cylinder when replacing the seal. Their diverse profile range includes Carcotex/UN, Carcotex/SP/Split, Carcotex/SP/SG/Split, Carcotex/PR/Split, Carcotex/SG.

CARCOTEX/UN

Carcotex/UN is suitable for more normal duty applications. It has been engineered for both rod and piston seals for cylinders in forging and extrusion presses. The male or top ring has 'buttons' that act like springs to optimize the preload. It also enables the oil pressure to distribute on both sides of the seal. CARCOTEX/UN packing comes in solid or split designs. Available in rod diameters up to 2 meters and in a variety of different cross sections.

CARCOTEX/SP/SPLIT

This configuration is designed for hydraulic presses in good mechanical condition. CARCOTEX/SP/SPLIT can include between 2 to 4 center vee rings. Available for ram diameters up to 3 meters and in different cross sections, both metric and imperial.

CARCOTEX/SP/SG/SPLIT

This configuration is designed for hydraulic presses in poor mechanical conditions, such as old presses for open die forging. The male adaptor automatically responds to fluid pressure levels and conforms to worn surfaces or misaligned rams. Carcotex/SP/SG/SPLIT can include 1 or 2 center vee rings. Available for rams up to 3 meters in diameter and comes in various cross-sectional dimensions, both metric and imperial.

CARCOTEX/PR/SPLIT

This type of packing is used in hydraulic presses with poor mechanical conditions. With Carcotex/PR/SPLIT packing, one of the center vee rings is made of rubber, which enhances the sealing performance on highly worn rams. Carcotex/PR/SPLIT can include 2 to 4 center vee rings. Available for ram diameters up to 3 meters and comes in various cross sections, both metric and imperial.

CARCOTEX/SG

This rod seal is used in poor mechanical conditions and is available in solid or split profiles. The male adaptor automatically responds to fluid pressure levels and conforms to worn surfaces or misaligned rams. No periodic adjustments are needed for this seal. Carcotex/SG can include an asymmetrical male adaptor in case of floating bushing. Available for rod diameters up to 2 meters in various cross-sections.
