Wear rings are precision-engineered to help keep the piston and rod centred and prevent metal-to-metal contact between components. This allows for even wear and pressure distribution on the seals. Our standard wear ring material is glass reinforced nylon

See our wear rings literature for more information.

Wear Ring Profiles

Butt Cut

Imperial  I  Metric

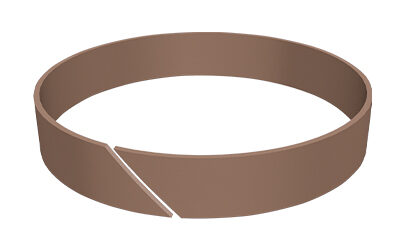

Angle Cut

Imperial  I  Metric

Step Cut

Imperial  I  Metric
