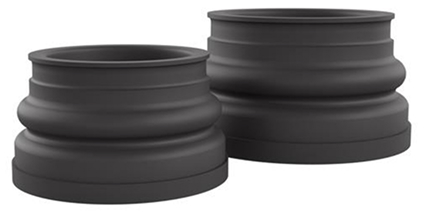

Mud Motor Boots

Mud motor boots seal the power section of a downhole mud motor, retaining grease within the tool while excluding abrasive drilling fluid and contaminants. In directional drilling applications, the boot operates under high differential pressure, elevated downhole temperatures, and continuous abrasion, where boot integrity affects how long the assembly can remain in service.

Common Mud Motor Boot Failure Modes

Operators typically see boot failures in the following forms:

• Extrusion at the boot lip or other unsupported areas under high differential pressure and pressure cycling
• Tearing or cutting caused by cuttings, sand, and other abrasive solids.
• Chemical swelling or hardening from prolonged exposure to drilling fluids, additives, oil-based or synthetic-based muds, and hydrocarbons.
• Heat aging and cracking resulting from sustained exposure to elevated downhole temperatures.

Each failure mode can point to different material requirements, including extrusion resistance, tear and abrasion resistance, chemical compatibility, and thermal stability. That is why compound selection is just as important as boot geometry when designing a mud motor boot.

Mud Motor Boot Materials

Hi-Tech Seals supplies downhole mud motor boots in nitrile (NBR), hydrogenated nitrile (HNBR), and Viton™/fluorocarbon (FKM) compounds.

Specialty HNBR Compounds for Mud Motor Boots

To address failure modes in downhole mud motor boot applications, we developed three specialty hydrogenated nitrile compounds: H7B1, H8B1, and H8B2. These compounds provide enhanced mechanical properties, increased tear strength, and improved chemical resistance to drilling fluids and additives, while providing a wide operating temperature range.

For compound-specific data, refer to our H7B1, H8B1, and H8B2 flyer.
